Product of Coet

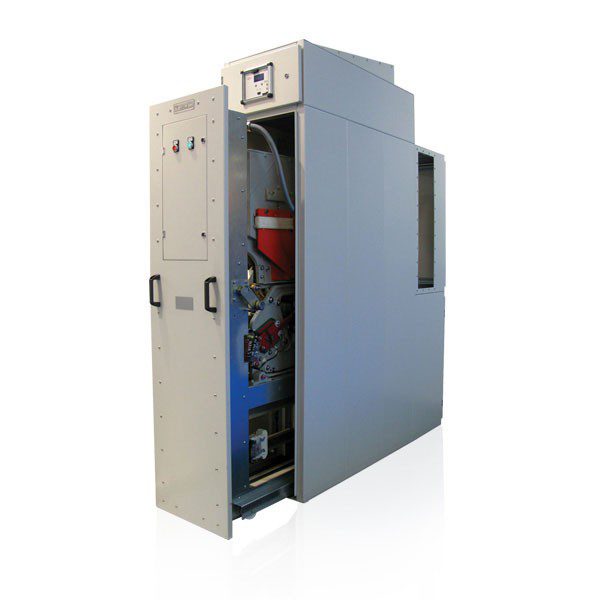

Coet DC Feeder Cubicles is designed for Industrial application with the switching capacity of 750 V/1500 V/3000 Vdc up to 10.000 A.
Coet DC Feeder Cubicles has 4 accessible compartments:
- Low Voltage Compartment
- High Speed Circuit Breakers compartment
- Cable Compartment
- Busbar Compartment
Description
Cells operate in 3 positions (service, test, outside) in terms of ease of operation, service and maintenance, and there is a locking system against user errors.
Coet DC Supply Switchgears are protected and controlled by a multi-functional protection relay and a logic control device.
Coet DC Supply Switchgears can be used in the following systems in accordance with EN 50123, IEC77, ANSI C 37-14, ANSI C37-16 short-circuit breaking capacities:
- Up to 10.000 A in 750 Vdc systems
- Up to 10.000 A in 1200 Vdc systems
- Up to 8,000 A in 1500 Vdc systems
- Up to 3000 A in 3000 Vdc systems
