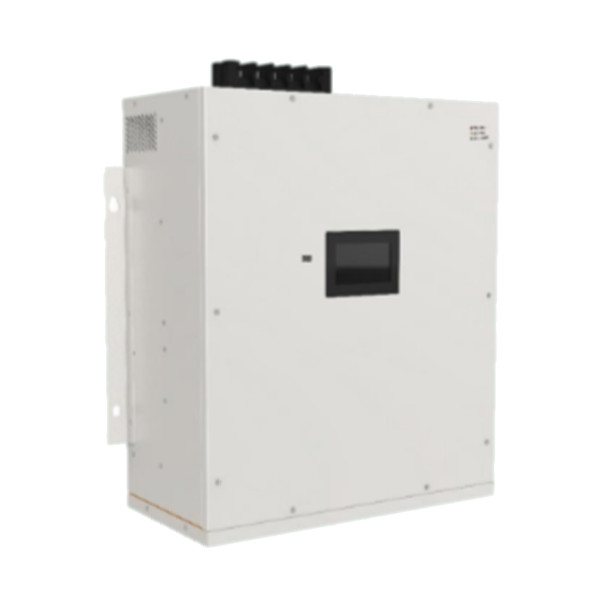

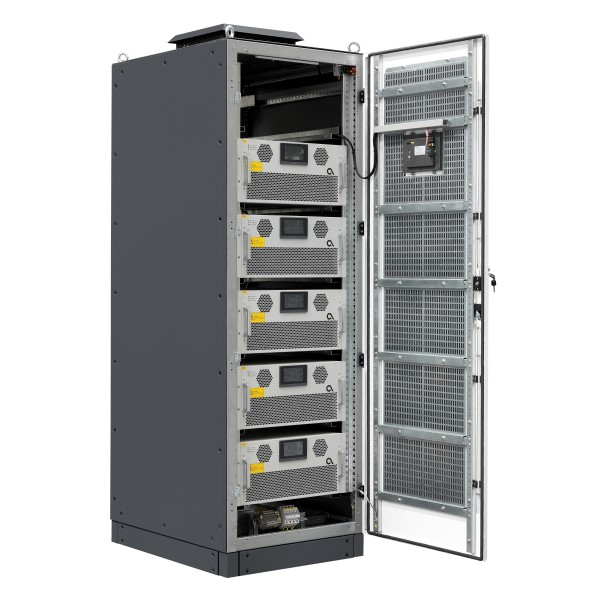

SVG series static var generators are used for inductive / capacitive reactive power compensation. SVG modules are designed for expansion and power increase with wall type single module or type tested SLV series modular panel structure.
Description
Operation Type: Automatic / Manual / Fixed
Switching Type: High frequency IBGT
Connection Type: Pull-out design with plug-in bushing for fast serviceability
Harmonic Filtering: Up to 17th harmonic filtration
Advantages
- Instant response to fast and sudden load changes
- Capacitive and inductive bidirectional compensation
- Pull-out design with plug-in bushing
- Easy installation and power expansion thanks to modular construction
- Possibility of backup thanks to its modular structure
- Modular design for fast service
- 600 kVAr compensation in a 700 x 950 x 2100 mm panel
- Switching and compensation so as not to cause transient oscillations and harmonics
- Active and Reactive balanced or unbalanced load intervention for 3 phases independently of each other, 3 phase load balancing
- Possibility to use with generators as it does not cause voltage rise
- Low power loss
- Efficient energy consumption with Eco Mode Feature
- Less than 50 μs response time
Application Areas
- Buildings and Offices
- Bank Headquarters
- Steel Plants
- Cement Plants
- Mining Facilities
- Chemical Plants
- Textile Factories
- Petrochemical Facilities
- Ports and Crane Systems
