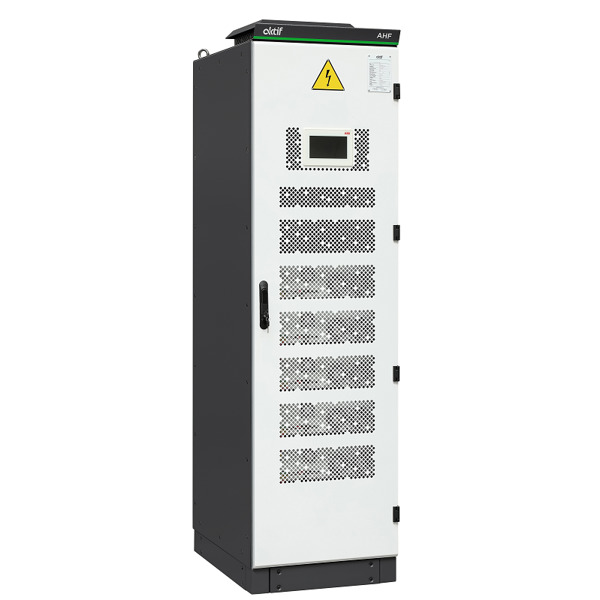

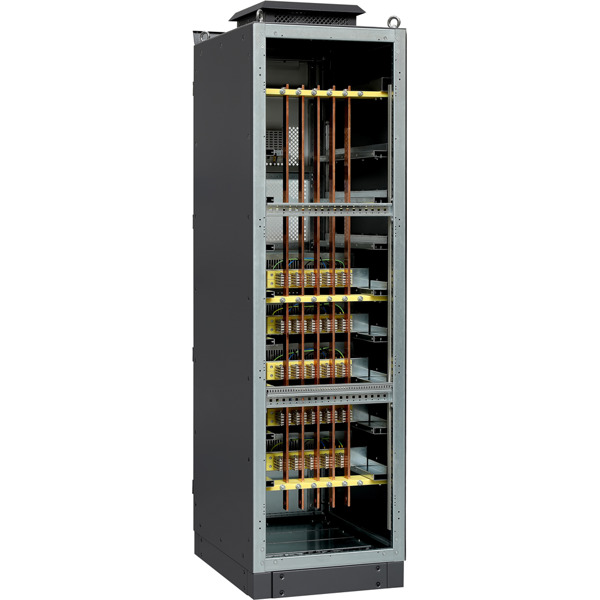

Active harmonic filters are filter systems used to filter high frequency disturbances. The type-tested SLV series is designed for expansion and capacity increase with its modular panel structure.
Description
Control Type: High switching frequency IGBT Module
Principle of Operation: Separate filtering on each phase and neutral line
Operation Type: Automatic / Selected harmonics

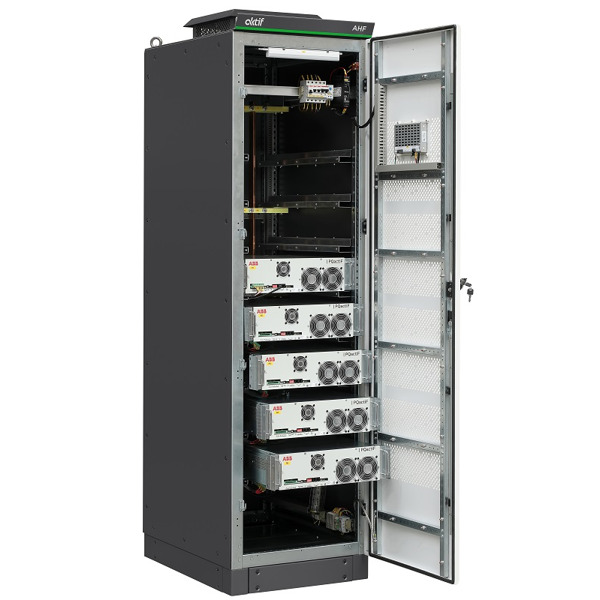

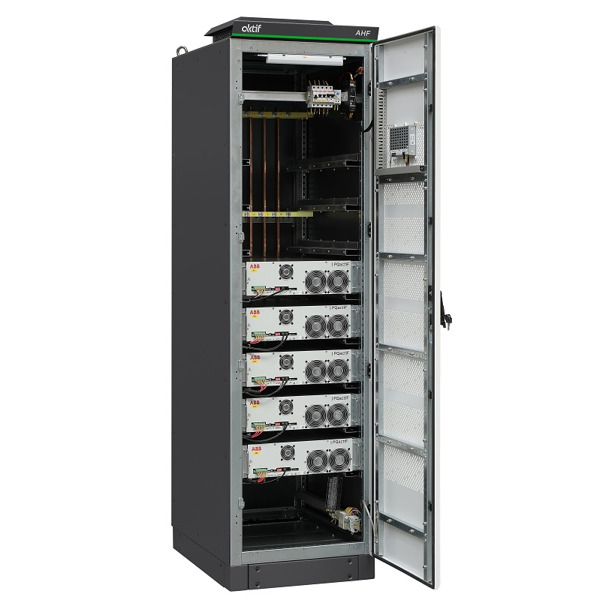

Connection Type: Pull-out design with plug-in bushing for fast serviceability
Advantages
- Modular module design with plug-in bushing
- Capacitive and inductive bidirectional compensation
- Drawer design with plug-in
- Easy installation and power expansion thanks to modular construction
- Modular design for fast and easy service
- Resonance detection
- 3P and 3P+N connection option
- Filtering up to the 51st harmonic
- Inductive and capacitive directional compensation
Application Areas
- Buildings and Offices
- Industrial Facilities
- Rail Systems
- Iron and Steel Factories
- Cement Factories
- Mine Facilities
- Chemical Factories
- Textile Factories
- Petrochemical Plants
- Port and Crane Facilities
